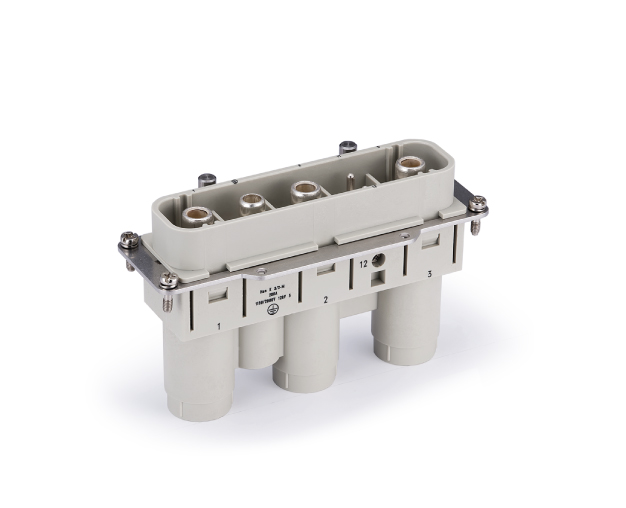

HK-003/0-M

Model： HK-003/0-M

Order No： 128 003 011 0001

Do you need to order crimp contacts separately： No

Suitable for the shell of the insert housing

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Series

HK insert series
Male/female

Male
Connection type

Axial bolt connection
Specifications

HP
Number of connector contacts

3
Grounding contacts

Yes
Rated current

200A
Rated voltage

1150

2000V
Rated pulse voltage

8KV
Class of pollution

3
Insulation resistance

≥10¹ºΩ
Working temperature

-40℃...+125℃
Mating cycles

≥500
Inserts material

Polycarbonate
Inserts color

RAL 7032 (light gray)
Flame retardant rating as per UL94

V0
Contact material

Copper alloy
Surface treatment

Silver-plated
Contact resistance

≤0.2mΩ
Wire gauge (mm²)

35-70mm²
Wire gauge (AWG)

2-00 AWG
Tightening/testing torque

35mm²→8Nm

50mm²→9Nm

70mm²→10Nm
Stripping length

22mm
Standard

DIN EN 60664

DIN EN 61984

Authentication

UL
CUL
CE

Downloads

2D Drawings

3D Models

3D_1280030110001_HK-003_0-M_V1.0.stp
