Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Power module
Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:3,Rated current:40A,Rated voltage:500V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):1.5-10mm²,Wire gauge (AWG):16-8 AWG
Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:3,Rated current:40A,Rated voltage:500V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):1.5-10mm²,Wire gauge (AWG):16-8 AWG
Module size:Single module,Connection type:Spring connection,Male/female:Male,Number of connector contacts:5,Rated current:16A,Rated voltage:400V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG
Module size:Single module,Connection type:Spring connection,Male/female:Female,Number of connector contacts:5,Rated current:16A,Rated voltage:400V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG
Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:6,Rated current:16A,Rated voltage:500V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-4mm²,Wire gauge (AWG):26-12 AWG
Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:6,Rated current:16A,Rated voltage:500V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-4mm²,Wire gauge (AWG):26-12 AWG

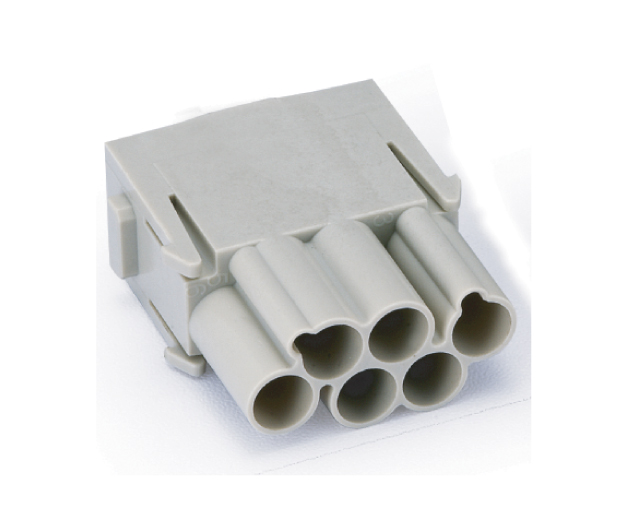

Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:6,Rated current:16A,Rated voltage:830V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-4mm²,Wire gauge (AWG):26-12 AWG

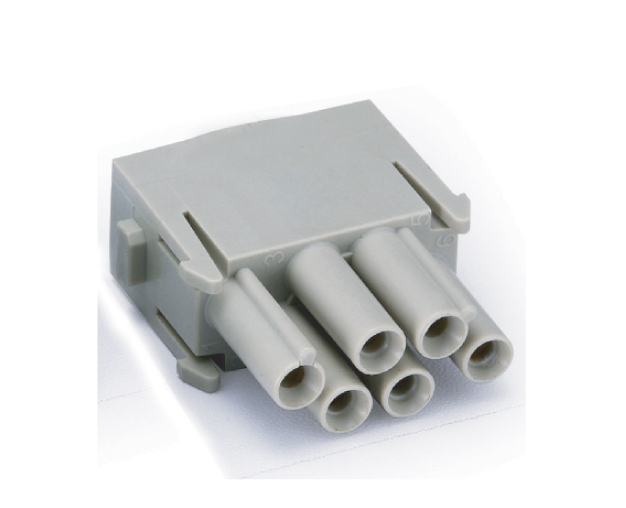

Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:6,Rated current:16A,Rated voltage:830V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-4mm²,Wire gauge (AWG):26-12 AWG
